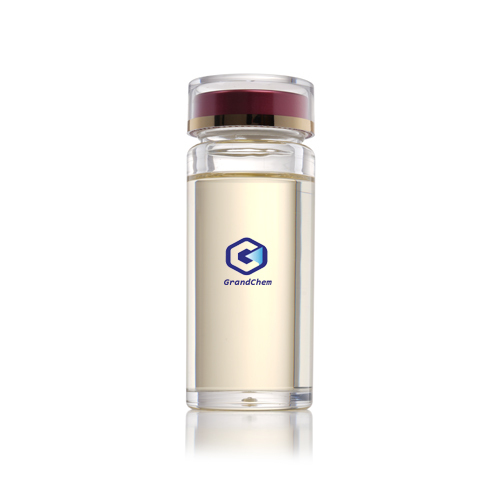

SYN-PE30BXH Ester Oil for Transformer Oil
Excellent flame retardancy
Good biodegradability and renewable performance
High ignition point
- SYN-HT
- China
- 15days
- 800mt/y
Details
Ester Oils for Transformer Oil Use
Descriptions
These series of ester oils are saturated polyol estesr (POE), which are environmentally friendly products. These series of ester oils have low thermal expansion coefficient, high lubricity, high breakdown strength, excellent flame retardancy, and extremely high thermal oxidation stability. These series of ester oils can be used as single base oils or synthetic base oil components, and the finished lubricant formulated by these series of ester oils are widely used in power transformers up to 238 kW, pole mounted transformers, traction transformers, and transformers with tap changers.
Characteristics
Item | SYN- PE30BXH | Test Method |
Appearance | Transparent | Visual |
40℃, KV, cSt | 25-35 | GB/T 265 |
100℃, KV, cSt | 5-8 | |
VI | 110 | GB/T 1995 |
Pour Point, ℃ | -50max | GB/T 3535 |
Flash Point, ℃ | 250min | GB/T 261 |
TAN,mgKOH/g | 0.02max | GB/T 7304 |
hydroxyl value, mgKOH/g] | 2max | GB/T 261 |
ignition point, ℃ | 300min | GB/T 3536 |
Color, Pt-Co | 50max | GB/T 3143 |
Density, 20℃, kg/m3 | 950-975 | GB/T 1884 |
Water, % | 50max | SH/T 0207 |
breakdown voltage, kV | 45min | GB/T 507 |
Dielectric loss factor. 90℃, 50hz | 0.03max | GB/T 5654 |
Applications and Recommended Dosage:
◎ Transformer Oils: Max 100%
Product Features:
◎ Excellent flame retardancy
◎ Good biodegradability and renewable performance
◎ High ignition point
◎ High breakdown strength
◎ Low thermal expansion coefficient
◎ Good oxidation stability and thermal stability
Packaging and Storage:
◎ Packed in metal drum(N.W.:200kgs) or IBC tank(N.W.:1000kgs)
◎ Stored and transported as non-hazardous materials, and stored in a cool, dry, ventilated, and sealed placesProduct Tag
